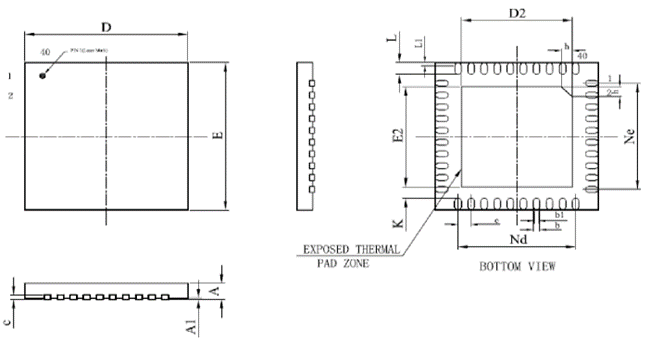

我们提供标准的QFN 40pins封装。QFN (Quad Flat No-Lead)采用0.45/0.55mm厚度。封装大小为5x5mm。AK32-H ASIC符合RoHS规范。

5mm x 5mm body size with 40 lead counts

Copper lead frame

Low profile 0.45/0.55mm body thickness

Refer to JEDEC MA026 (ISSUE D)/BBD
