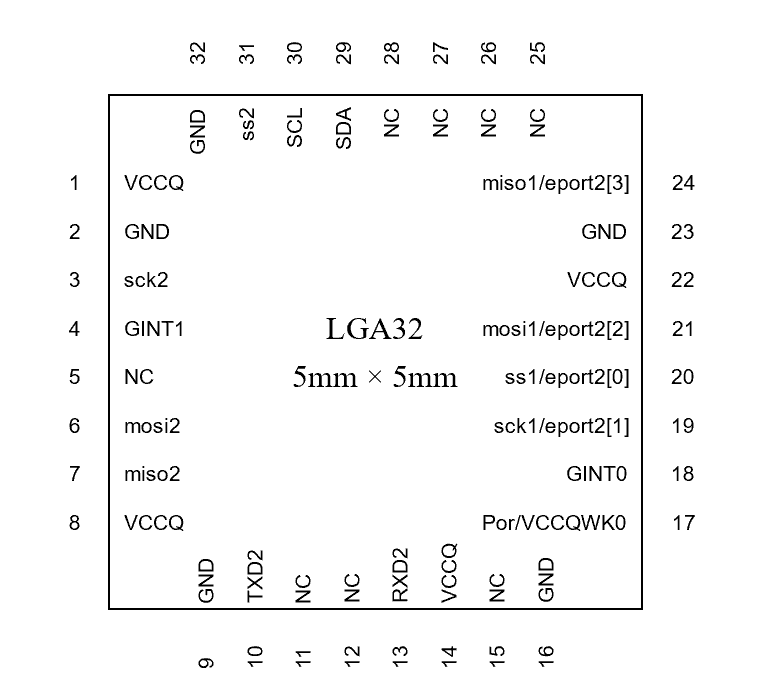

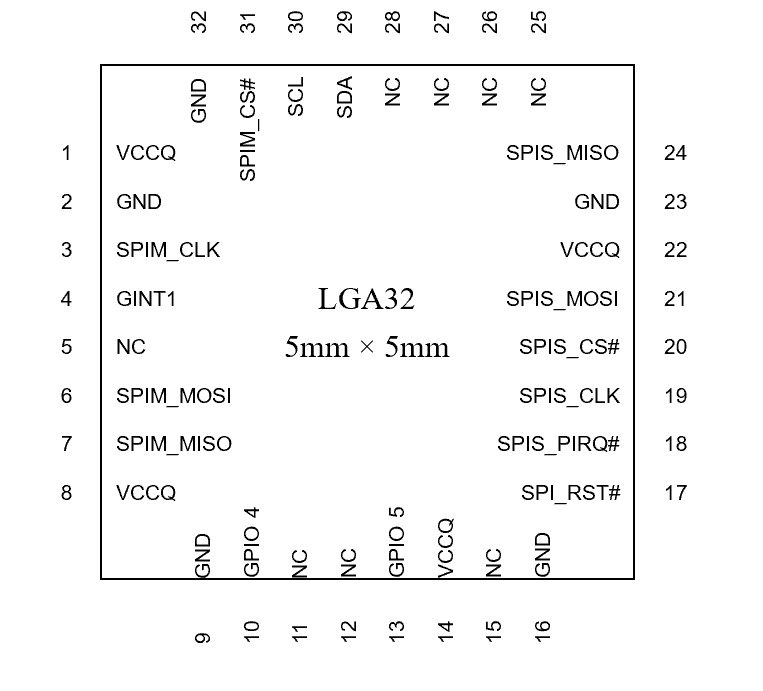

我们提供标准的LGA 32pins封装。LGA (Land Grid Array)采用0.7/0.8mm厚度。封装大小为5x5mm。AK32-T1 ASIC符合RoHS规范。

5mm x 5mm body size with 32 lead counts

Copper lead frame

Low profile 0.7/0.8mm body thickness

Refer to JEDEC MA026 (ISSUE D)/BBD
