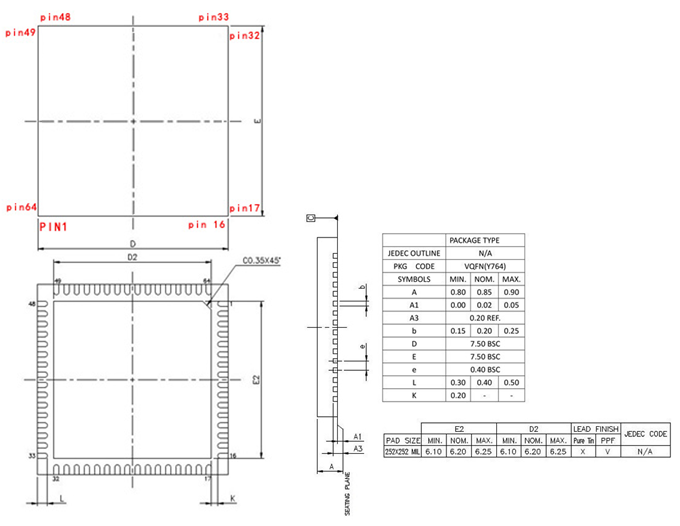

We offer standard 64 pins QFN package. QFN (Quad Flat No-Lead) provides low profile with 0.75/0.85mm body thickness, suitable for space concerned applications. Package size 7.5x7.5mm and lead-counts 64 are offered for portable, lightweight and low profile applications. ALL STSTech AK4X ASIC comply with RoHS and Leaf-free specification with the following features.

7.5mm x 7.5mm body size with 64 lead counts

Copper lead frame

Low profile 0.75/0.85mm body thickness

Refer to JEDEC MA026 (ISSUE D)/BBD
